01
Ion Exchange Technology
Ion exchange resin-based softening process designed for effective reduction of calcium and magnesium hardness.
India's Trusted Water Softener Plant Manufacturer
Industrial Water Treatment System

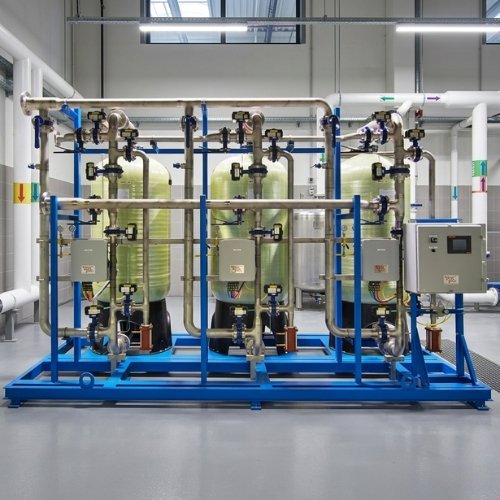

Water Softener Plant
MG RO Technology is a leading Water Softener Plant manufacturer and supplier in India , providing customized water softening systems for industrial, commercial, and process applications. Our water softener plants are designed to reduce hardness-causing minerals such as calcium and magnesium, helping protect pipelines, boilers, heat exchangers, RO membranes, and other water-based equipment.
We provide automatic, semi-automatic, and customized water softener systems based on feed-water quality, hardness level, flow rate, operating hours, and application requirements.
A Water Softener Plant is a water treatment system used to reduce hardness in water by removing calcium and magnesium ions. Hard water can cause scale formation inside pipelines, boilers, heat exchangers, cooling systems, RO pretreatment equipment, and industrial machinery.
A properly designed water softener uses an ion-exchange process in which hardness ions are exchanged with sodium ions through specially selected resin media. When the resin reaches its treatment capacity, it is regenerated using a salt solution, allowing the system to continue operating. MG RO Technology designs water softening solutions according to application requirements and feed-water conditions.
TECHNICAL DETAILS
Technical Specifications of Water Softener Plant
Water softener plants can be configured according to water hardness, flow rate, operating pressure and application requirements.
| Technology | Ion Exchange Resin |
|---|---|
| Efficiency | Up to 98% |
| Operating Pressure | 2–4 kg/cm² |
| Resin Life | Up to 7 Years |
| Flow Rate | 500 LPH to 100,000 LPH |
| Material | FRP / MS / SS Options |
| Voltage | 220–240 V |
| Frequency | 50 Hz |
| Water Source | Borewell / Municipal / River Water |
| pH Range | 6.5 – 8.5 |
| Hardness Tolerance | Up to 1200 ppm as CaCO3 |
| Control Valve | Automatic / Manual |
| Regeneration | Manual / Automatic |
| Drain Connection | 2” – 2.5” |
| Outlet Size | 1” – 2” |
KEY BENEFITS
Features of Water Softener Plant
MG RO Technology water softeners are designed for reliable hardness reduction and easy integration with industrial and commercial water treatment systems.
02
High Hardness Removal
Designed to provide efficient hardness reduction and help protect downstream industrial water equipment.
03
Heavy-Duty Construction
Compact and corrosion-resistant construction options are available for demanding industrial environments.
04
Automatic & Manual Operation
Available with automatic or manual control and regeneration configurations according to operating requirements.
WATER SOFTENING PROCESS
How Does a Water Softener Plant Work?
A water softener plant uses an ion-exchange process to reduce hardness-causing calcium and magnesium from water. The process helps minimize mineral scale and protect water-using equipment.
PROCESS
How It Works
01
Raw Water Inlet
Hard water enters the water softener vessel through the inlet connection and passes through the ion-exchange resin.
02
Ion Exchange
Calcium and magnesium ions responsible for water hardness are exchanged through the resin media, reducing water hardness.
03
Soft Water Outlet
After hardness reduction, treated soft water exits the vessel and is supplied to the required industrial or commercial application.
04
Resin Regeneration
When the resin becomes exhausted, a salt-based brine solution regenerates the resin for the next treatment cycle.
BENEFITS
Advantages of Soft Water
✓
Lower Cleaning Costs
Soft water can reduce the consumption of soap, detergents and other cleaning products.
✓
Protects Plumbing
Reduced mineral deposits help minimize scale formation inside pipes and support better water flow.
✓
Supports Water Heater Efficiency
Lower scale buildup on heating surfaces can help maintain efficient heat transfer.
✓
Longer Equipment Life
Reduced mineral buildup can help protect water heaters, appliances and water-based equipment.
✓
Reduced Maintenance
Lower scale formation can reduce cleaning, descaling and maintenance requirements.
AVAILABLE SYSTEMS
Types of Water Softener Plants
Water softening systems are available in different configurations to meet commercial, industrial and process water treatment requirements.
Automatic Water Softener Plant
Automatic water softeners use control valves to manage service, backwash, brine regeneration and rinsing cycles with minimal manual intervention.
- Automatic regeneration
- Reduced operator involvement
- Suitable for continuous applications
Semi-Automatic Water Softener
Semi-automatic systems provide a practical solution where selected operating and regeneration functions are managed by an operator.
- Simple operation
- Cost-effective configuration
- Easy operational control
Industrial Water Softener Plant
Industrial water softeners are designed for factories, boiler systems, RO pretreatment and high-volume water treatment requirements.
- Customized treatment capacity
- Industrial-duty construction
- Application-based design
INDUSTRIAL APPLICATIONS
Applications of Water Softener Plant
Water softener plants are used wherever hardness control is required to protect equipment, reduce mineral scale and support efficient water treatment operations.
Industrial Manufacturing
Used in manufacturing facilities for process and utility water applications.
Boiler Feed Water
Helps reduce hardness-related scale formation in boiler feed water systems.
RO Pretreatment
Used before reverse osmosis systems to reduce hardness and help control scaling.
Cooling Towers
Supports hardness control in cooling water systems and helps minimize mineral scaling.
Textile Industry
Used for suitable process and utility water requirements in textile manufacturing.
Pharmaceutical Industry
Used as part of water treatment systems for selected pharmaceutical process and utility applications.
Food Processing
Supports suitable process and utility water requirements in food processing facilities.
Dairy Industry
Supports water treatment requirements for dairy processing and associated utility systems.
Chemical Industry
Provides hardness-controlled water for selected chemical processing and utility applications.
Hotels & Commercial Buildings
Helps protect plumbing, water heaters and water-using equipment from hardness-related scale.
Process Industries
Suitable for industrial process water systems where hardness reduction is required.
Water Treatment Systems
Can be integrated into larger water treatment systems as a hardness reduction and pretreatment stage.
Frequently Asked Questions
What is a water softener plant?
A water softener plant is a water treatment system designed to remove hardness-causing minerals, mainly calcium and magnesium, from water. It uses ion-exchange resin to replace these minerals with sodium ions, helping prevent scale formation in boilers, pipelines, heat exchangers, and other industrial equipment.
How does an industrial water softener work?
An industrial water softener works through an ion-exchange process. Hard water passes through a vessel containing specially designed resin, which captures calcium and magnesium ions and exchanges them with sodium ions. When the resin becomes exhausted, it is regenerated using a brine solution so the softener can continue operating efficiently.
What type of hardness does a water softener remove?
A water softener primarily removes calcium and magnesium hardness, which are the main causes of scale formation in water systems. It is particularly effective for reducing hardness that can affect boilers, industrial processes, cooling systems, and other water-using equipment.
What capacity water softener plant do I need?
The required water softener plant capacity depends on factors such as water consumption, flow rate, raw-water hardness, operating hours, and required regeneration frequency. An appropriate capacity should be selected based on a water analysis and the application’s specific requirements. A water-treatment manufacturer can recommend the suitable system after evaluating these parameters.
How often does a water softener require regeneration?
The regeneration frequency depends on the raw-water hardness, water consumption, resin capacity, and softener size. Some industrial systems regenerate daily, while others may operate for several days before regeneration. The regeneration cycle should be designed according to the actual water quality and operating requirements to maintain consistent soft-water output.
GET THE RIGHT WATER SOFTENING SOLUTION
Need a Water Softener Plant for Your Industry?
Get a customized Water Softener Plant designed according to your water hardness, flow rate, operating conditions, and application requirements. Contact MG RO Technology for a suitable and reliable water softening solution.
{
