Industrial RO Membrane
Industrial RO (Reverse Osmosis) Membranes are high-performance filtration components used in large-scale water treatment systems to reduce dissolved salts, contaminants, and impurities from water. They are designed for high-volume industrial applications where consistent treated-water quality is required.
Industrial RO membranes are widely used in manufacturing, power generation, food and beverage processing, pharmaceuticals, and desalination. Their performance depends on membrane material, permeability, salt rejection, operating pressure, feed-water quality, and system design.
Key Characteristics of Industrial RO Membranes
Thin-Film Composite Membrane Material
Most modern industrial RO membranes use Thin-Film Composite (TFC) construction. TFC membranes generally feature a polyamide active layer designed to provide efficient contaminant rejection and reliable performance in demanding water-treatment applications.
Cellulose Acetate (CA) membranes were used more widely in earlier RO systems, while TFC membranes are now commonly selected for their filtration performance and suitability for industrial applications.
High Water Permeability
Industrial RO membranes are designed to provide high water permeability, allowing significant volumes of water to pass through the membrane while retaining dissolved contaminants.
Membrane permeability directly affects system productivity, energy requirements, and overall RO plant performance.
Extremely Fine Filtration
RO membranes provide filtration at a molecular level, with an effective separation capability commonly associated with approximately 0.0001 micron. This enables RO systems to reduce dissolved salts, heavy metals, microorganisms, and other contaminants from feed water.
Actual removal performance depends on membrane type, feed-water chemistry, operating conditions, and system configuration.
High Salt Rejection
Salt rejection is one of the most important performance parameters of an industrial RO membrane. It indicates the membrane’s ability to prevent dissolved salts and other contaminants from passing into the permeate stream.
Depending on membrane type and application, industrial RO membranes can provide high salt-rejection performance, with the exact value determined by the manufacturer’s specifications and operating conditions.
High Operating Pressure
Industrial RO membranes operate under elevated pressure to overcome the natural osmotic pressure of the feed water and drive water through the membrane.
Operating pressure varies according to the feed-water TDS, osmotic pressure, membrane type, temperature, recovery requirement, and system design. Typical industrial systems may operate across a broad pressure range, while seawater RO systems require substantially higher pressures.

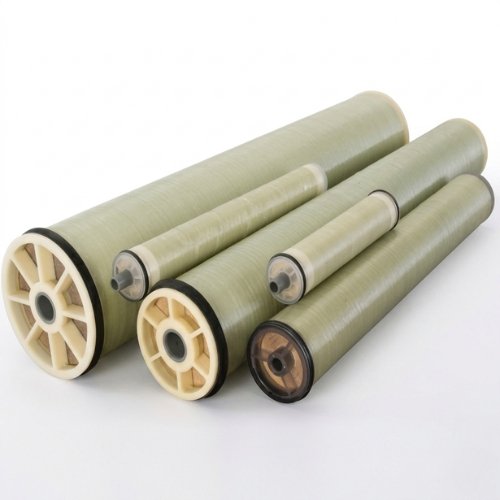

Industrial RO Membrane Element
The industrial RO membrane element is the heart of every reverse osmosis system. It is designed to remove dissolved salts, heavy metals, bacteria, viruses, and total dissolved solids (TDS) from water with high precision. These membranes are widely used in industrial water purification systems where consistent water quality is required.
| Product Type | Reverse Osmosis Membrane Element |
|---|---|
| Function | Separation of dissolved solids from water |
| Filtration Accuracy | Up to 0.0001 micron level filtration |
| Material | Thin Film Composite (TFC) Polyamide |
| Application | Industrial RO Plants, Water Treatment Systems |
| Key Benefit | High rejection rate with stable performance |
| Water Quality Output | High purity, low TDS water |

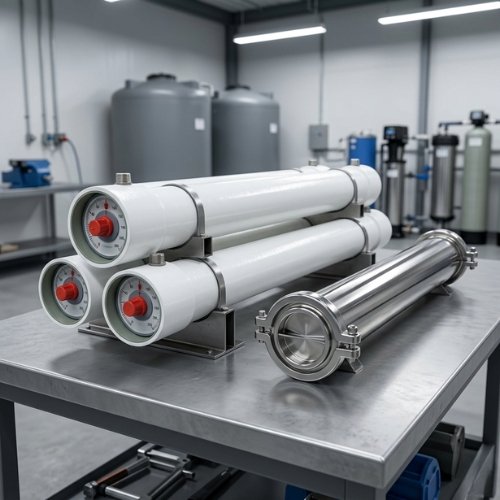

Industrial RO Membrane Housing
RO Membrane Housing is a pressure vessel designed to hold RO membrane elements securely during high-pressure water filtration. It ensures safe operation, leak-free performance, and long-term durability in industrial RO systems.
| Product Type | High Pressure Membrane Housing |
|---|---|
| Material | FRP / Stainless Steel / PVC Options |
| Pressure Rating | Up to 300 PSI Industrial Grade |
| Compatibility | 4040 / 8040 RO Membrane Elements |
| Application | Industrial RO Plants, Water Purification Systems |
| Feature | Leak-proof sealing with high durability |
| Benefit | Stable membrane performance under pressure |
Need High-Quality Industrial RO Membrane Solutions?
Get premium Industrial RO Membrane Elements and Membrane Housing designed for high-pressure water filtration systems. Suitable for all types of industrial RO plants ensuring high TDS rejection, stable performance and long service life. Share your requirement and our technical team will suggest the right membrane configuration for your application.
